Integrate with other apps

ArcGIS QuickCapture can be integrated with other apps using either a QuickCapture link or a custom URL scheme. Both methods support the same parameters, but there are platform-dependent differences between the methods.

QuickCapture links begin with https://quickcapture.arcgis.app and can be opened from or can open other ArcGIS apps that support app linking, and are available on iOS and Android only. ArcGIS apps that can be opened with a QuickCapture link include ArcGIS Survey123, ArcGIS Collector, ArcGIS Navigator, and ArcGIS Explorer.

Custom URL scheme links begin with arcgis-quickcapture:// and can be opened from or can open other ArcGIS apps on Android and Windows. To use a custom URL scheme link on iOS, the other app must also have QuickCapture approved within it to allow linking. ArcGIS apps that can be opened with a URL scheme from QuickCapture include ArcGIS Survey123 and Collector for ArcGIS (Classic).

Using a custom URL scheme on Windows is a good way to create and test your link and its parameters before deploying it to your mobile workers as either a custom URL scheme or a QuickCapture link.

QuickCapture links are the preferred method of linking between apps, and custom URL schemes are the preferred method for sharing projects.

Link to QuickCapture from a desktop web browser

You can create a link to open the QuickCapture mobile app that can be embedded into another app. The same link can also be entered into a web browser for testing. The following steps describe creating a custom URL scheme and using it in a desktop web browser:

Note:

Once you have created your link, you can substitute arcgis-quickcapture:// with https://quickcapture.arcgis.app and it will work as a QuickCapture link.

1. Type arcgis-quickcapture:// in your browser.
   The QuickCapture mobile app opens (or you are prompted to open it).

   Note:

   To launch and download a project from a specific portal, include the portal URL parameter, for example, arcgis-quickcapture://?portalUrl=host.domain.com/webadaptor (where host, domain, and webadaptor are replaced by your portal information). To use an external browser for sign in, include the externalBrowserSignIn parameter and set it to true, for example, arcgis-quickcapture://?portalUrl=host.domain.com/webadaptor&externalBrowserSignIn=true.

You can also add a unique reference to a project and add it to the URL. First, you must identify the item ID of the project you want to open. This is the string of characters that ArcGIS Online uses to uniquely identify your project and can be found in the URL of your project item in ArcGIS Online. For example, if your project's URL is https://exampleurl.maps.arcgis.com/home/item.html?id=dcdb68465fbc4c38a6aba7f5165cdfd4, your project's item ID is dcdb68465fbc4c38a6aba7f5165cdfd4.

2. To include your project in the URL you're constructing, add ?itemId= and your project's item ID to the URL.
   Your URL should look similar to the following:

   arcgis-quickcapture://?itemId=dcdb68465fbc4c38a6aba7f5165cdfd4

   If you test your URL, it should now open the QuickCapture mobile app and immediately open your project.

   Note:

   If not already on your device, the project will be downloaded.

Optionally, you can include a predetermined project user input variable.
3. To populate the project user input variable, type &userInput= and the value you want to enter; the ampersand (&) acts as a parameter separator.

   Your URL should look similar to the following:

   arcgis-quickcapture://?itemId=dcdb68465fbc4c38a6aba7f5165cdfd4&userInput=Area7

   This URL will open the QuickCapture mobile app and your project, and the project user input value of Area7 will be used in any field that has been configured to accept it.

Contents of fields can also be passed to QuickCapture from a pop-up in an ArcGIS web map, allowing integration with any Esri apps that make use of pop-ups in a web map.
4. Select Configure Pop-up for an existing layer in your web map. In the display drop-down menu, select a custom attribute display, click Configure, and insert a link to your project.



   To populate a project user input variable with the value of the workArea field for the feature from which the link was launched, type &userInput={workArea}; the ampersand (&) acts as a parameter separator and the braces ({}) denote a field name.

   Your URL should look similar to the following:

   arcgis-quickcapture://?itemId=dcdb68465fbc4c38a6aba7f5165cdfd4&userInput={workArea}.

Link to QuickCapture from another app

You can create a link for use within other apps to launch QuickCapture and capture a record. The following steps describe creating a QuickCapture link and using it in an Explorer pop-up. These links are entered in the pop-up of a web map in your ArcGIS organization. You can optionally test these links using a web browser (using similar steps as in the section above) on an iOS or Android device; however, the links will not work on Windows.

1. Select Configure Pop-up for an existing layer in a web map that will be viewed in Explorer.

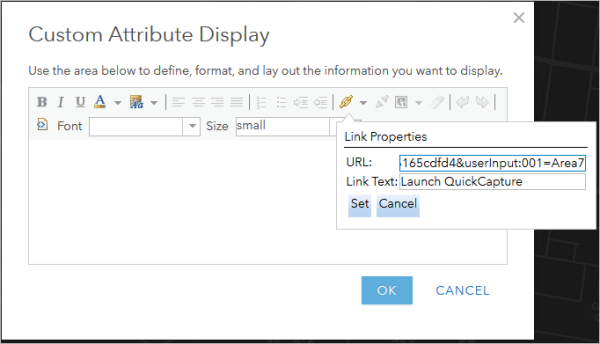

2. In the display drop-down menu, select a custom attribute display, click Configure, and insert a link to your project.
3. Enter https://quickcapture.arcgis.app for the URL parameter, enter Launch QuickCapture for Link Text, and click OK.
   1. Launch your web map in Explorer on a mobile device.
   2. Select a feature and click the Launch QuickCapture link in the pop-up to launch QuickCapture.
4. To include your project in the URL you're constructing, add ?itemId= and your project's item ID to the URL.
   Your URL should look similar to the following:

   https://quickcapture.arcgis.app/?itemId=dcdb68465fbc4c38a6aba7f5165cdfd4

   If you test your URL, it should now open the QuickCapture mobile app and immediately open your project.

   Note:

   If not already on your device, the project will be downloaded.

Optionally, you can include a predetermined project user input variable.
5. To populate the project user input variable, type &userInput= and the value you want to enter; the ampersand (&) acts as a parameter separator.

   Your URL should look similar to the following:

   https://quickcapture.arcgis.app/?itemId=dcdb68465fbc4c38a6aba7f5165cdfd4&userInput=Area7

   This URL will open the QuickCapture mobile app and your project, and the project user input value of Area7 will be used in any field that has been configured to accept it.

Contents of fields can also be passed to a project user input variable from Explorer.
6. To populate a project user input variable with the value of the workArea field for the feature from which the link was launched, type &userInput={workArea}; the ampersand (&) acts as a parameter separator and the braces ({}) denote a field name.

   Your URL should look similar to the following:

   https://quickcapture.arcgis.app/?itemId=dcdb68465fbc4c38a6aba7f5165cdfd4&userInput={workArea}

Link to another app from QuickCapture

A QuickCapture project can be configured to open another app by selecting a button that opens a URL, providing a flexible and seamless experience for mobile workers to work with QuickCapture and other applications.

To link to another app from QuickCapture, you need to Configure a project by adding a link button and configuring the URL for the link button. In the designer, you can configure the button to open a dedicated URL, for example, a custom URL or an app link that opens another Esri app. In the case of the ArcGIS Survey123 field app, you can additionally browse and select a survey form and predefine the values for survey questions.

To configure a button that launches a URL to a dashboard, complete the following steps:

1. Click the button and go to the Link tab.
2. Click URL.
3. Enter https://quickcapture.maps.arcgis.com/apps/webappviewer/index.html?id=00d69d13b139455ea8f3256a884a89fd as the URL.

This creates a link button that will launch the QuickCapture Marine Debris Dashboard when selected in the mobile app. In the text editor, you can enter any HTTPS-based URL, or a custom URL scheme of another app that has allowed QuickCapture.

Note:

Links can also be created to launch communication apps such as email, SMS, and phone. This can be a great way to give users quick access to help from within the project. The following are examples of communication app links:

• Email—mailto:[e-mail]?subject=Fix%20the%20pipe&body=We%20really%20need%20to%20fix%20the%20pipe
• SMS—sms:0291920995 (On Android, a message body can also be included: sms:0291920995?body=We%20really%20need%20to%20fix%20the%20pipe)
• Phone—tel:[phone]

To configure a button that launches the ArcGIS Survey123 field app, complete the following steps:

1. Click the button and go to the Link tab.
2. Click Survey123 field app.
3. Select a survey to link to the button.

   This defines the itemID parameter in the Survey123 link.

4. Click Add to add a survey question and match a fixed value, device variable, or project user input to the question.

   This defines the value of the specified field:fieldname parameter in the Survey123 link. Repeat this step to add all required survey questions. To remove a survey question that has been configured, click the delete button. This removes the specified field:fieldname parameter in the Survey123 link.

5. Optionally, enable Pass location to Survey123 to include the center parameter with latitude and longitude values in the Survey123 link. If a geopoint question is included in the survey, the map will be centered on the location passed to it from QuickCapture.
6. Optionally, enable Return to QuickCapture to redirect the user to QuickCapture when a survey is submitted.

   This adds a callback:submit parameter in the Survey123 link.

The designer constructs the Survey123 link automatically.

Your URL should look similar to the following. This example includes a fixed value for condition, a device variable for capturetime, and a project user input for username.

arcgis-survey123://?itemID=2a41c332e24644ee895bbbd9b929773f&field:condition=damaged&field:capturetime=${captureTime}&field:username=${userInput:001}

Alternatively, you can manually construct the Survey123 link with the URL option. In the text editor, construct the URL manually, or use the toolbar to add a predefined value for the URL parameters. You can select a fixed value, device variable, or project user input variable to add to the URL. The variables are indicated using braces ({}) in your constructed URL, and the actual value in the braces will be filled automatically by the mobile app when the button is pressed.

When you switch between the URL and Survey123 field app options, the existing URL is discarded.

For more information on the parameters supported by Survey123, see Integrate Survey123 with other apps.

Note:

When assigning variables to survey questions, the field type must match.

Although URL parameters that are not encoded work in some environments, it is recommended that you encode URL parameters when you manually construct a URL. Encoding replaces invalid characters with the percent sign (%) followed by their hex equivalent. For example, if you want to include the callback parameter, your URL should look similar to the following:

arcgis-survey123://?itemId=36ff9e8c13e042a58cfce4ad87f55d19&callback:submit=https%3A%2F%2Fquickcapture.arcgis.app%253Fitemid%99c18758066b42e1a0f4027603070b34
